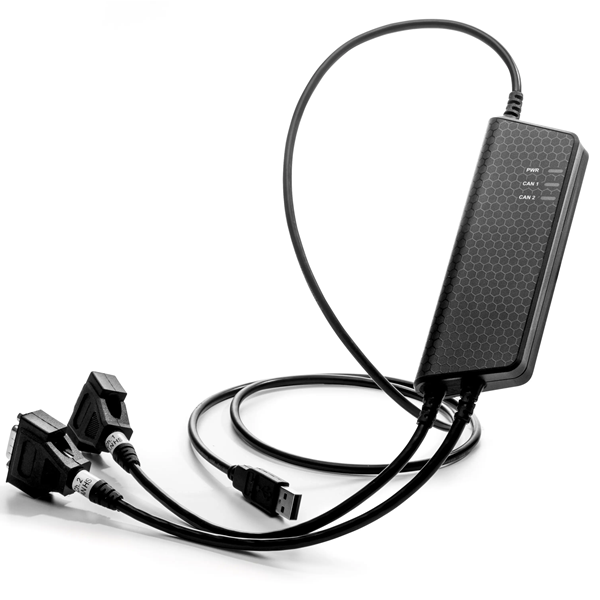

The USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.

Major Features

• USB CAN interface with Kvaser t programmability.
• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• Quick and easy plug-and-play installation.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC.
• Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware.
• Simultaneous operation of multiple devices.
• Support for SocketCAN, see elinux.org for details.

For additional information, check out the following link

Please use the link provided to view the data sheet
