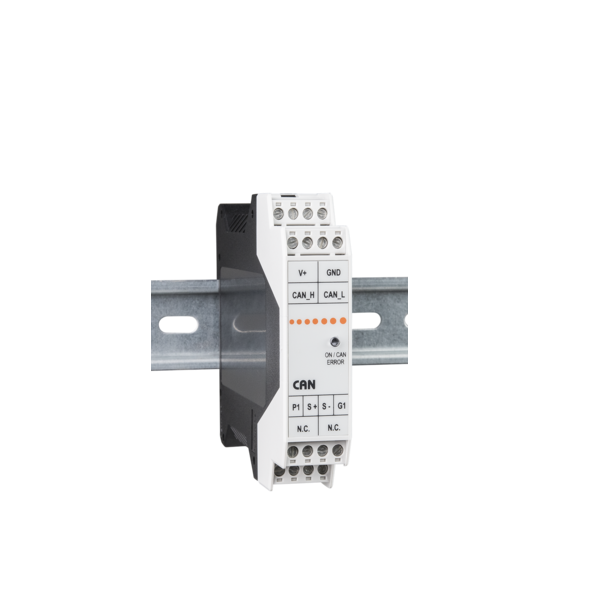

Microcontrol I/O modules SNAP Variant (for control cabinets)

Available in following variants:

• 1 x Analogue IN – Converter Voltage (±10V)/ Current (0-20mA) to CANopen: µCAN.1.ai-SNAP
• 1 x Pressure IN (1-channel Strain Gauge Acquisition with CANopen) – µCAN.1.sg-SNAP
• 1 x Temperature IN (1-channel Analogue Input Temperature Pt100/ Thermocouple with CANopen) – µCAN.1.ti-SNAP
• 4 x Analogue OUT (4-channel Analogue Output Voltage/ Current with CANopen) – µCAN.4.ao-SNAP
• 4 x Counter IN (4-channel Digital Counter with CANopen) – µCAN.4.ci-SNAP
• 6 x Analogue IN- 6-channel Analogue Voltage/ Current Acquisition with CANopen: µCAN.6.ai-SNAP
• 8 x Digital IN/OUT (8-channel Digital Input/ Digital Output with CANopen/ CANopen FD/ J1939) – µCAN.8.dio-SNAP
• 8 x PWM (8-channel Pulse Width Output (PWM) with CANopen) – µCAN.8.pwm-SNAP
• Designed to be mounted on a TS35 rail system
• CANopen/ J1939 (50kBit/s to 1Mbit/s)/ EtherCAT interface
• Module monitoring via heartbeat function
• Wire break and short circuit detection
• Up to 16-bit/ 24-bit resolution for standard signals ±10V, 0-20mA, 4-20mA
• Temperature measurement at 16-bit resolution
• Pt100 and thermo signal type J, K and L
• Precise 16-bit D/A converter
• Accuracy voltage output: 1mV
• Accuracy current output: 1µA
• The resisting bridge data will be acquired at a total sampling rate of 400 Hz
• Internal power supply of strain gauge bridge
