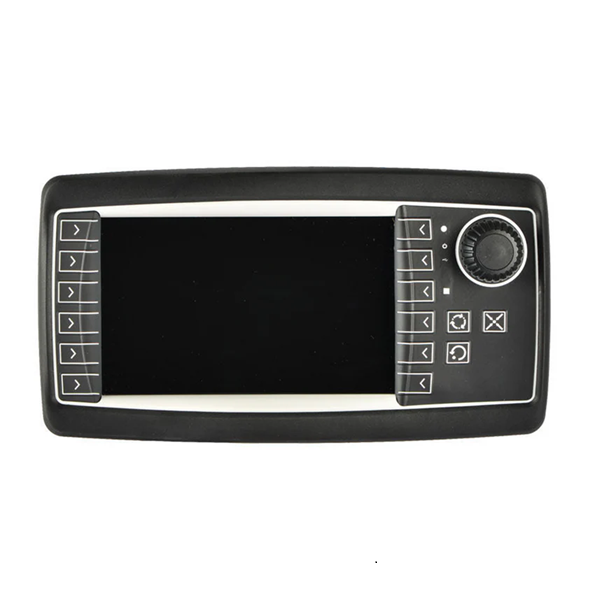

OPUS A6 (7”) 2nd Generation
Available in four variants:
- Eco Basic
- Eco Full
- Standard Basic
- Standard Full
- Aluminium die cast, coloured light grey (RAL 7035)
- Programmable using either OPUS Projektor tool/ Codesys/ C/C++/ Codesys Web visualisation
- Touch (Analog resistive)/ Without touch
- Light sensor
- IP65, withstand up to 5G vibrations
- Keypad (6+6+4), encoder (only available in standard variant)
- Interface: CAN bus, RS 232, USB, Ethernet Interface, Video interface, Audio output
- Optional configurable analog/ digital inputs and digital outputs
- Processor platform (Basic version)
CPU: Freescale I.MX6 solo, 800 MHz
Mass Storage: 2 GByte (~minus space for OS & application)
RAM: 512 Mbyte
RTC: Buffered by gold cap
Buzzer: 80 dB @ 1kHz in 1m distance
- Processor platform (Full version)
CPU: Freescale I.MX6 solo, 800 MHz
Mass Storage: 4 GByte (minus space for OS & application)
RAM: 512 MByte
RTC: Buffered by battery
Buzzer: 80 dB @ 1kHz in 1m distance
