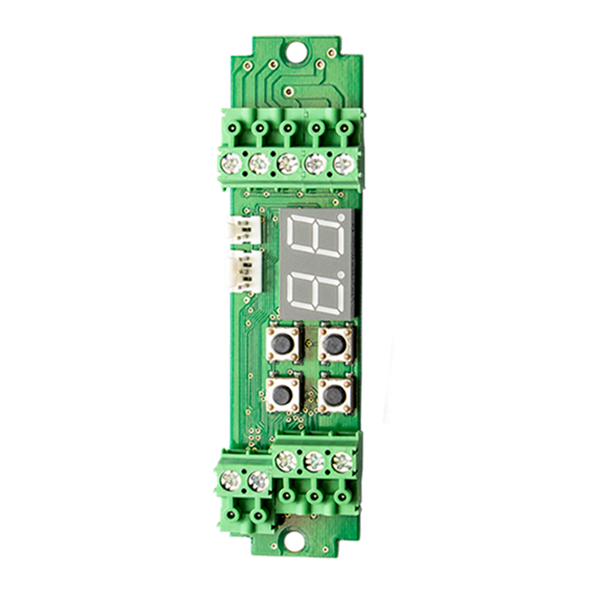

Single Axis Driver Board SDB-P1
The SDB-P1 Single Axis Driver Board is designed to proportionally drive two solenoids using proportional control devices such as Joysticks, Slider Modules, Rocker Modules or Variable Voltage Modules.
The SDB-P1 has two proportional high current PWM outputs and one switched auxiliary output. The operating parameters of the PWM outputs can be adjusted through the on-board switches and display.
- Adjustable high current PWM outputs, up to 2.5A
- Wide supply voltage range +6V to +30V
- Power supply protected against transients and reverse polarity
- Control inputs protected
- Built in fault detection
- Dual 7-segment display and switches for field calibration
