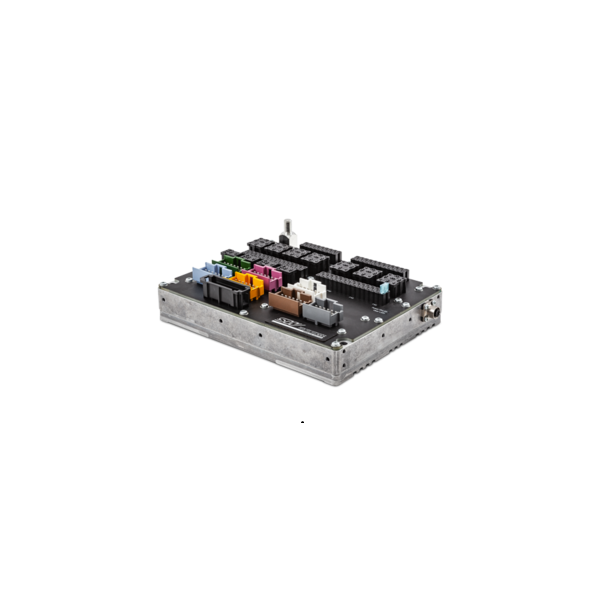

STW-BCX.3clu
The BCX product family is responsible for the safeguarding, distribution, switching and control of electrical energy in a vehicle. In addition to the safeguarding of the individual power circuits, larger loads including lights, lamps, air conditioning systems and heating systems can be directly activated or controlled.
We are able to offer body control units which fulfill all requirements with regard to performance capability and quality thanks to a combination of connector technology in press-fit technology and our long-standing experience in control electronics with regard to design and series production. By using tried and tested modules, the new product is compatible with our portfolio and tool chain. For users, this means the use of know-how over different function levels. Depending on the expansion stage, the BCX.3clu can be integrated into the CAN bus network of the vehicle.
A further advantage is generated through the implementation of customer-specific software. This makes it possible to interlink inputs and outputs through software according to individual requirements. The connections to peripherals take place via robust connectors suitable for mobile use. Users receive function and cost-optimized solutions featuring field-tested technology through standard solutions, but also through customer-specific designs and production.
- Modular construction kit based on a mechanical platform and a generic control platform
- Flexible programming in C and Codesys V3.5 IEC61131
- Compliance with standards for the automotive, agricultural and construction machinery industries
- Error Diagnostics
- Monitoring of relays, fuses and consumers in the on-board network
- Less wiring effort
- 4 CAN interfaces, 1 RS232 interface, 1 RS485 interface and 1 Ethernet interface 36 inputs and 74 outputs
