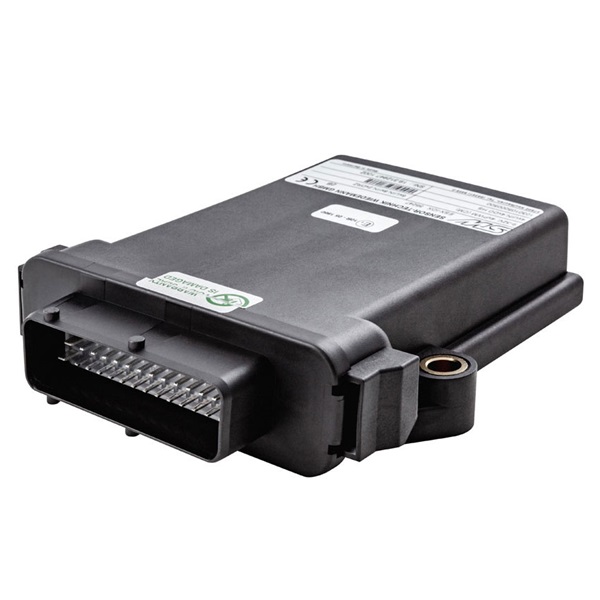

STW ESX.iox
Cost-optimized CANopen-slave-I/O module for the extension of the inputs/outputs of a master control unit via CAN. The communication of the master control unit takes place via CANopen or a layer 2 protocol. The ESX.iox fulfils the safety requirements (PL b).
KEY FEATURES
• Control specially designed for use in harsh mobile applications
• Predefined variants
• CANopen
TECHNICAL DATA
• 8 bit Microcontroller, 16MHz
• 64 kB Flash internal
• 2 kB EEPROM
• 1 CAN interface
• 4 A motor bridge
• Option 1: 28 inputs
Option 2: 24 inputs / 4 outputs
Option 3: 20 inputs / 8 outputs
Option 4: 16 inputs / 12 outputs
ACCESSORIES
• Mating plug
